Maximizing Industrial Efficiency: The Ultimate Guide To The Rockwell Automation Library
Industrial automation demands rapid development, absolute reliability, and seamless integration between programmable logic controllers (PLCs) and human-machine interfaces (HMIs). To achieve these goals, system integrators, control engineers, and maintenance teams rely heavily on the Rockwell Automation Library. This comprehensive ecosystem consists of two vital components: the digital software code libraries (primarily the PlantPAx Library of Process Objects) and the extensive Literature Library for technical documentation.
Standardizing engineering workflows using these tools eliminates the need to write complex control code from scratch. Instead, engineering teams can utilize pre-tested, validated code blocks that link directly to standardized HMI graphic elements. This unified approach drastically reduces commissioning times, minimizes programming errors, and ensures that plant operators have access to rich diagnostic information.
Whether you are looking to download the latest Add-On Instructions (AOIs) for a Studio 5000 Logix Designer project or seeking specific hardware wiring diagrams in the technical documentation database, understanding how to navigate and leverage these resources is essential. This guide provides an in-depth technical analysis of both the software libraries and the literature portal to help you optimize your next automation project.
Understanding the Dual Nature of the Rockwell Automation Library
When automation professionals search for the "Rockwell Automation Library," they generally fall into two camps: those looking for software development blocks and those seeking technical documentation. Both resources are crucial to the life cycle of an industrial control system, but they serve completely different operational needs.
The Library of Process Objects (PlantPAx)
The software-focused library, formally known as the Rockwell Automation Library of Process Objects, is a collection of pre-configured controller code and visualization elements. Built specifically for the Logix5000 controller family and FactoryTalk View software, these objects provide control for common industrial assets such as variable speed drives, valves, analog transmitters, and discrete motors.
By employing these standardized objects, organizations can implement a uniform look, feel, and operational philosophy across different production lines and geographic facilities. Operators trained on a PlantPAx-based system in one facility can seamlessly transition to another because the alarm structures, interlocks, and faceplates function identically.
The Literature and Technical Documentation Library
The documentation-focused library is Rockwell’s centralized online repository for user manuals, installation guides, technical data sheets, and wiring diagrams. This database is the primary source of truth for hardware specifications, environmental ratings, and compliance documentation for Allen-Bradley products.
For design engineers drafting electrical schematics or maintenance technicians troubleshooting a faulted I/O module, the Literature Library is indispensable. It contains historical and current publications, allowing engineers to verify compatibility between legacy systems and modern hardware architectures.
Inside the Library of Process Objects: Code and Visualization
The core strength of the Rockwell software library lies in its tightly coupled "controller-to-visualization" architecture. Rather than programming control logic and HMI screens independently, engineers import matching pairs of Add-On Instructions (AOIs) and FactoryTalk View Faceplates.
Add-On Instructions (AOIs) and User-Defined Data Types (UDTs)
In Studio 5000 Logix Designer, the Library of Process Objects utilizes AOIs to encapsulate complex logic into a single, reusable instruction block. Inside these instructions are pre-defined parameters and local variables structured through User-Defined Data Types.
This encapsulation ensures that the underlying control code—such as standard ramp rates, PID calculations, interlock processing, and bypass modes—remains locked and protected from accidental modification. When an engineer instantiates a motor object, they simply configure the pre-exposed parameters, significantly accelerating the programming phase.
FactoryTalk View Faceplates and Global Objects
On the HMI side, the library provides matching Graphic Library files and global objects. When a user clicks on a pump icon on an operator screen, a detailed popup window (faceplate) appears. This faceplate is directly linked to the controller's AOI data structure.
These faceplates are not merely static displays; they are dynamic, highly functional operator interfaces. They display current runtime status, diagnostic warnings, historical alarms, interlock bypass screens, and maintenance override controls. Because these links are pre-configured, the risk of mapping the wrong HMI tag to a PLC tag is completely eliminated.

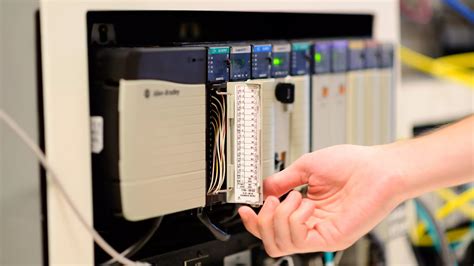

Product Compatibility and Migration | Rockwell Automation
Comparing Custom PLC Programming vs. Rockwell Library Objects
Deploying a standardized library involves a trade-off between absolute customization and rapid, reliable standardization. Below is a detailed technical comparison of writing custom logic from scratch versus implementing the Rockwell Automation Library of Process Objects.
| Feature | Custom-Written Control Code | Rockwell Automation Library (PlantPAx) |
|---|---|---|
| Development Speed | Slow; requires writing, mapping, and testing every line of logic and graphic tag connection. | Extremely fast; drag-and-drop pre-configured code blocks and HMI elements. |
| Code Consistency | Low; varies significantly depending on the individual programming style of each engineer. | Absolute; identical coding structure and graphic presentation across all projects. |
| Diagnostics & Alarming | Limited to whatever diagnostic logic the programmer manually configures. | Built-in; comprehensive tracking of interlocks, permissives, alarms, and bypass states. |
| Memory Footprint | Low to moderate; streamlined for specific tasks with minimal overhead. | High; advanced diagnostics and multi-layered logic consume more controller memory. |
| Regulatory Compliance | Requires extensive validation and documentation for industries like FDA/GAMP. | Simplified; built on validated, pre-tested software standards. |
| Troubleshooting Difficulty | High; requires a deep understanding of the specific programmer's logic flow. | Low; standardized faceplates allow maintenance staff to diagnose faults instantly. |
How to Get Started: Downloading and Implementing the Library
Implementing the Rockwell Automation Library of Process Objects into a new or existing control system requires a structured engineering workflow. Following these steps ensures database integrity and minimizes compatibility issues during system integration.
Step 1: Accessing the Product Compatibility and Download Center (PCDC)
To download the software libraries, navigate to the Rockwell Automation PCDC. Log in with your credentials and search for "Process Library" or "Library of Process Objects." Ensure that you select the version of the library that matches your current Studio 5000 Logix Designer firmware and FactoryTalk View version. Downloading incompatible versions can result in broken graphics tags or controller compilation errors.
Step 2: Importing AOIs and UDTs into Studio 5000
Once downloaded, extract the library files. Open your Studio 5000 project:
- Right-click on the "Add-On Instructions" folder in the Controller Organizer.
- Select "Import Add-On Instruction."
- Navigate to the downloaded library directory, select the desired
.L5Xfile (e.g.,P_Motor.L5X), and click Import. - The software will automatically import the corresponding User-Defined Data Types required for that instruction.
Controller Organizer ├── Controller Tags └── Assets ├── Add-On Instructions │ ├── P_Motor (Imported Library Object) │ └── P_Valve (Imported Library Object) └── User-Defined Diagrams
Step 3: Integrating Graphic Libraries into FactoryTalk View
To enable visualization, open your FactoryTalk View Studio project:
- Right-click on "Graphics" in the Explorer window and select "Import."
- Choose "XML Graphic Information File" or select the direct Library
.gfxfiles. - Import the global objects and common faceplates.
- Ensure the macro files and parameter files associated with the library are placed in their respective project directories to facilitate correct dynamic tag addressing.
Safety, Compliance, and Security Considerations
When implementing standardized code libraries in industrial environments, safety and cybersecurity must be prioritized. The Rockwell Automation Library of Process Objects is designed with strict adherence to industrial standards, but proper implementation remains the responsibility of the system architect.
Network and Operational Security
Because the Library of Process Objects exposes deep diagnostic capabilities to the HMI layer, it is essential to restrict write access. Utilizing FactoryTalk Security allows administrators to define user roles (e.g., Operator, Maintenance, Engineer).
Operators may only be permitted to start or stop a motor, whereas maintenance personnel can bypass interlocks, and engineers can modify tuning parameters. Without these security constraints, exposing the deep parameter control built into the faceplates poses an operational risk.
Functional Safety and SIL Ratings
While the standard Process Library objects are excellent for regulatory control, they are not rated for safety-instrumented functions (SIF). For safety-critical loops, such as emergency shutdown systems or burner management systems, engineers must use Rockwell's dedicated GuardLogix safety controllers and safety-certified code blocks. Standard library objects can be used to monitor safety status, but they must never be used to execute safety-critical interlocking logic.
Frequently Asked Questions (FAQ)
Is the Rockwell Automation Library of Process Objects free to download?
Yes, the Library of Process Objects (including PlantPAx code library files, AOIs, and FactoryTalk View faceplates) is free to download for registered users via the Rockwell Automation Product Compatibility and Download Center (PCDC). However, utilizing the software platforms required to run them (such as Studio 5000 and FactoryTalk View) requires active software licenses.
What is the difference between an Add-On Instruction (AOI) and a User-Defined Data Type (UDT)?
An AOI is an encapsulated block of executable code that performs a specific control function (like driving a variable speed motor). A UDT is a structured database container that defines the variables, status bits, and configuration parameters used by the controller. Every library AOI relies on a specific UDT to organize its inputs, outputs, and internal memory states.
Can I modify the standard code inside Rockwell's library instructions?
Standard library AOIs are typically locked or sealed to preserve software integrity and maintain system standardization. While it is technically possible to duplicate and modify them, doing so is highly discouraged. Modifying standard library blocks makes future upgrades extremely difficult, invalidates vendor-validated code structures, and can introduce unexpected bugs into your control sequence.
How do I find manual revisions for legacy Allen-Bradley hardware?
To locate documentation for legacy or discontinued hardware, utilize the Rockwell Automation Literature Library. You can filter your search by "Publication Status" to include archived and obsolete documents. Searching by the exact product catalog number (e.g., 1771-IAD) is the fastest way to retrieve legacy user manuals and installation instructions.
Which PLC hardware families support the Library of Process Objects?
The modern Library of Process Objects is optimized for Logix5000 controllers, which include the ControlLogix and CompactLogix processor families. These controllers possess the memory capacity, processing power, and tag-based database structure required to handle the dense logic overhead associated with standardized object-oriented libraries.
Optimize Your System Integration Workflow
Standardizing on the Rockwell Automation Library is one of the most effective strategies for reducing engineering costs, speeding up project commissioning, and improving long-term facility maintainability. By bridging the gap between controller logic and HMI graphics, these pre-configured objects allow your engineering team to focus on process optimization rather than writing repetitive baseline code.
To take your system integration to the next level, evaluate your current programming standards and identify areas where integrating the Rockwell Automation Library can streamline your operations. Leverage the Product Compatibility and Download Center today to download the latest library files, and ensure your team is trained to deploy these powerful, standardized assets on your next control system upgrade.
