Complete Guide To Modular Home Screen Doors: Sizing, Selection, And Installation
Selecting the right screen door for a modular or manufactured home requires a clear understanding of specialized housing standards. Unlike traditional stick-built properties constructed on-site, modular homes are manufactured in controlled factory environments. Because these structures conform to distinct transport and regional building regulations, their door frames, structural openings, and casing systems frequently differ from conventional site-built residential standards. Acquiring a replacement screen door is not as simple as picking up a standard model from a local hardware store; it requires careful consideration of structural dimensions and design options.
The term "modular home screen doors" refers to two distinct concepts in the home improvement industry. The first involves specialized, off-size screen doors built specifically to fit the unique rough openings of manufactured, mobile, and modular homes. The second concept relates to modern, modular-panel screen doors, which feature interchangeable screen and glass inserts designed for year-round seasonal adaptability. Understanding these distinctions is crucial to choosing a door that improves your home’s ventilation, enhances energy efficiency, and provides a precise, bug-free fit.
Investing in a high-quality screen door for your modular home offers benefits that go far beyond aesthetics. A well-fitted door facilitates natural cross-ventilation, significantly reducing reliance on air conditioning during temperate seasons. It also acts as a primary protective barrier, keeping outdoor pests and debris out of your living space while allowing natural light to illuminate your entryway.
Sizing and Sytem Types for Modular Screen Doors
The most critical step in purchasing a modular home screen door is understanding the sizing constraints. While standard site-built homes typically utilize door sizes such as 36" x 80", modular and manufactured homes are notorious for using non-standard dimensions. Common heights for these structures include 76 inches and 78 inches, with widths frequently measuring 32 inches, 34 inches, or 36 inches. Attempting to force a standard retail door into a manufactured frame usually results in severe alignment issues, compromised seals, and costly structural modifications.
To address these dimensional variances, manufacturers produce specialized outswing screen doors designed with low-profile, integrated mounting flanges. These door systems are engineered to mount directly onto the exterior casing of a modular home’s door frame, accommodating the thinner wall construction typical of manufactured housing. Before making a purchase, you must differentiate between a standard mobile home utility door and a true modular exterior frame, as their structural load capacities and trim styles differ considerably.
On the other hand, if you are looking for structural versatility, modern modular-panel screen doors are an excellent choice. These innovative systems feature a rigid main frame with tracks that allow you to swap screen panels for insulated glass panes depending on the season. This dual-utility design transforms your screen door into a protective storm door during cold winter months, helping to seal in drafty entryways and lower your monthly heating utility bills.
Material and Mesh Specifications for Manufactured Homes
The longevity and performance of your screen door depend heavily on the materials used in its construction. Extruded aluminum is the industry standard for high-performance modular screen doors. Unlike roll-formed aluminum, which is thin and susceptible to bending, extruded aluminum is pushed through a die, resulting in a thick, structurally rigid frame that resists warping, denting, and high-wind damage. For budget-conscious homeowners, vinyl-coated frames offer a corrosion-resistant alternative, though they lack the long-term structural integrity of heavy-duty aluminum.
| Screen Door Type | Frame Material | Standard Dimensions | Durability Rating | Best For |
|---|---|---|---|---|
| Heavy-Duty Outswing | Extruded Aluminum | 34" x 76", 34" x 80", 36" x 80" | High | High-traffic front entryways |
| Modular Seasonal | Aluminum / Vinyl | 32" x 76", 36" x 80" | Medium-High | Variable climates (seasonal swapping) |
| Sliding Screen | Roll-Formed Aluminum | 36" x 78", 36" x 80" | Medium | Back patios and sliding glass doors |
| Magnetic Hanging | Heavy-Duty Polyester | Custom Fit (Hanging) | Low-Medium | Budget-friendly seasonal use |
Equally important is the selection of the mesh insert, as different materials serve distinct environmental and functional needs:
- Fiberglass Mesh: This is the most popular choice due to its flexibility, affordability, and rust-free properties. It offers excellent visibility and airflow but can be torn by pets.
- Pet-Resistant Mesh: Made from heavy-duty vinyl-coated polyester, this mesh is up to seven times stronger than standard fiberglass. It easily resists claws, scratches, and heavy impacts.
- Solar Screen Mesh: Specifically designed for homes in warm climates, solar mesh blocks up to 90% of solar heat gain and UV rays. This helps protect your interior flooring from fading and reduces cooling costs.
- Stainless Steel Security Mesh: If security is a priority, high-tensile stainless steel wire mesh provides robust protection against forced entry while maintaining full airflow and visibility.

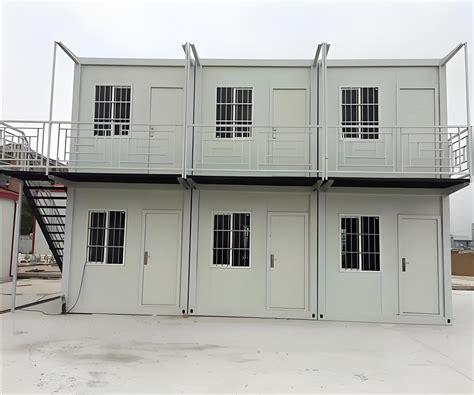

Long-Lasting Modular Living Unit with Glass/Steel Doors and Optional ...
Step-by-Step Installation Guide for Modular Home Screen Doors
Installing a screen door on a modular home requires precision, particularly during the initial measurement phase. Because manufactured homes can settle over time, door frames may warp slightly out of square. Begin by measuring the width of the rough opening at the top, middle, and bottom, using the smallest dimension as your guide. Repeat the process for the height, measuring from the threshold to the underside of the top header. Always measure the inside of the door jamb where the screen door will sit, rather than the decorative outer trim.
Once you have purchased the correct door size, check the swing direction. Most modular home doors swing outward, so you must determine whether a left-hand or right-hand hinge placement works best for your entryway. The screen door should hinge on the same side as your primary exterior door to prevent hardware interference and ensure easy access to both door handles. Prep the frame by clearing away old caulk, debris, or weatherstripping to create a clean, flat surface for the new installation.
Next, position the screen door in the opening to test the fit. Use wooden or plastic shims along the bottom and sides to ensure the door is perfectly level and plumb, leaving a consistent 1/16-inch to 1/8-inch gap around the perimeter. Secure the hinge rail directly to the exterior door casing using heavy-duty, rust-resistant wood or self-tapping metal screws. Once hung, install the latch assembly, the hydraulic closer, and the safety wind chain. The wind chain is an essential addition for modular homes, preventing sudden gusts of wind from catching the door and bending the aluminum frame.
Pros and Cons of Modular Screen Doors
Pros
- Optimized Ventilation: Facilitates excellent airflow through the home, reducing interior temperatures and lowering energy consumption during spring and autumn.
- Custom Sizing Options: Readily available in specialized dimensions (such as 34" x 76" and 32" x 76") that match the specific build specifications of modular and manufactured housing.
- Pest and Debris Barrier: Keeps mosquitoes, flies, and wind-blown leaves out of your living space while allowing natural light to filter in.
- Seasonal Versatility: Modular panel options allow homeowners to swap screen inserts for solid glass panes, transforming the door into an insulated storm barrier for winter.
Cons
- Limited Retail Availability: Finding non-standard modular screen doors at standard home improvement chains can be difficult, often requiring custom orders or specialized manufactured home parts suppliers.
- Wind Sensitivity: Lightweight aluminum or vinyl frames can warp or bend under high-wind conditions if not properly secured with a wind chain or hydraulic door closer.
- Structural Material Variances: Cheaper roll-formed aluminum options tend to degrade quickly, requiring homeowners to spend more on extruded aluminum for long-term durability.
Frequently Asked Questions
Can I install a standard residential screen door on a modular home?
In most cases, standard residential screen doors will not fit a modular or manufactured home without significant frame modifications. Standard homes typically feature rough openings of 36" x 80" or 32" x 80", whereas modular homes often require shorter heights, such as 76 or 78 inches. Additionally, the mounting flanges on specialized modular screen doors are designed to fit the thinner exterior walls of manufactured homes. It is always best to purchase a door specifically sized and rated for modular structures.
How do I protect my screen door from being damaged by high winds?
High winds are a common cause of damage to lightweight exterior doors. To protect your investment, install a heavy-duty hydraulic door closer and an adjustable safety wind chain. The closer regulates the speed at which the door shuts, preventing it from slamming, while the wind chain limits how far the door can swing open. Additionally, opting for a screen door made from extruded aluminum rather than roll-formed aluminum provides the structural strength needed to withstand strong gusts.
What is the difference between extruded and roll-formed aluminum screen frames?
The difference lies in how the aluminum is manufactured and shaped. Roll-formed aluminum is made by shaping thin sheets of aluminum over rollers, resulting in a lightweight, hollow frame that is easily bent, dented, or warped. Extruded aluminum is created by forcing hot metal through a shaped die, producing a much thicker, heavier, and structurally superior frame. Extruded aluminum is highly recommended for high-traffic entryways and areas prone to severe weather.
Are magnetic screen doors a good alternative for modular homes?
Magnetic screen doors can be a practical, budget-friendly, and temporary solution, especially for high-traffic areas where kids or pets frequently run in and out. They are easy to install using adhesive hook-and-loop tape and do not require a rigid door frame. However, they do not offer the security, durability, wind protection, or insect-tight seal of a solid, frame-mounted aluminum screen door.
How do I properly clean and maintain my modular screen door?
Keep your screen door looking and functioning like new with simple annual maintenance. Wash the aluminum frame and mesh screen using a soft brush, warm water, and a mild dish soap to remove dirt, pollen, and salt buildup. Avoid using abrasive chemical cleaners, which can strip the protective powder coating. Lubricate the hinges, latch mechanism, and hydraulic closer annually with a silicone-based spray lubricant to ensure smooth, quiet operation.
Elevate Your Entryway with a Premium Modular Screen Door
Enhance the comfort, energy efficiency, and curb appeal of your manufactured home with a high-quality, properly sized screen door. Whether you need a heavy-duty extruded aluminum door to handle daily wear and tear or a versatile modular-panel system for seasonal changes, choosing the right fit makes all the difference. Don't settle for drafts, bugs, or subpar cooling. Measure your entryway today, select the perfect mesh and frame material for your climate, and enjoy a fresher, more comfortable home all year round.
